COMPLETELY RECYCLABLE, HIGHLY ENERGY-EFFICIENT PVC PRODUCT FOR A REASONABLE PRICE

Our technologies and know-how allow to have a window with secure top-venting hopper in the tilt position, an inward opening casement in the turn position.
There are several functional combinations: TurnTilt, Tilt before Turn, Tilt only, Turn only, Escape or combination (sashes with fixed frames) window types.
Windows can be designed in various combinations, sizes and decorative partitions and all other individual features of the product may vary to fit your home design needs.

Specifications
Decorative bars
Profile colors
Glass
Accessories

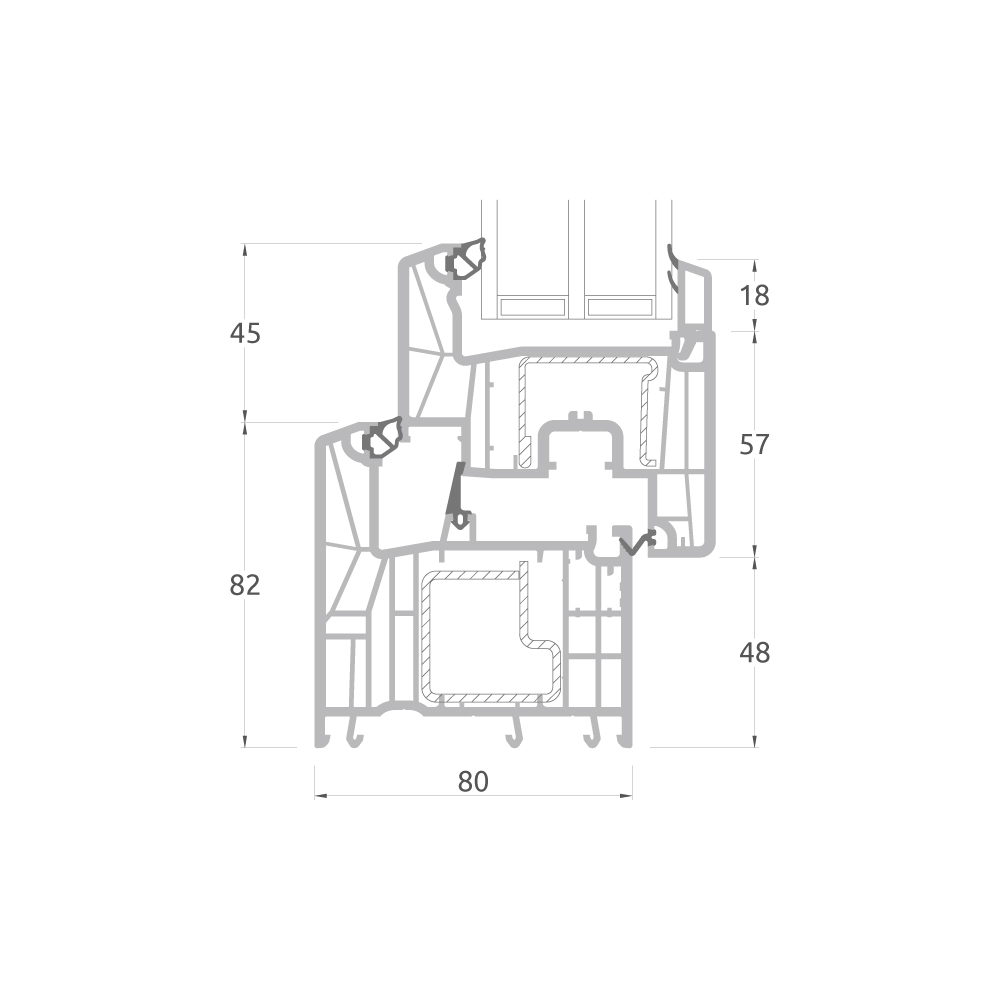

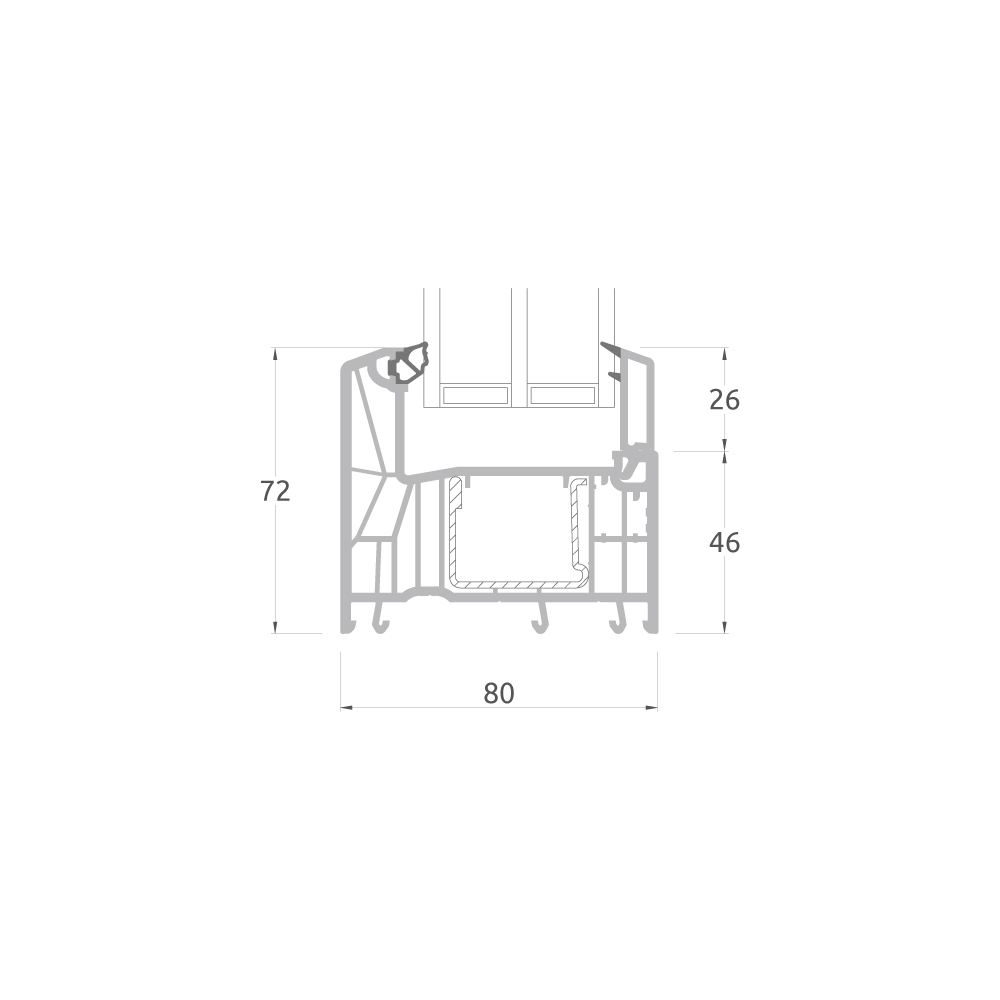

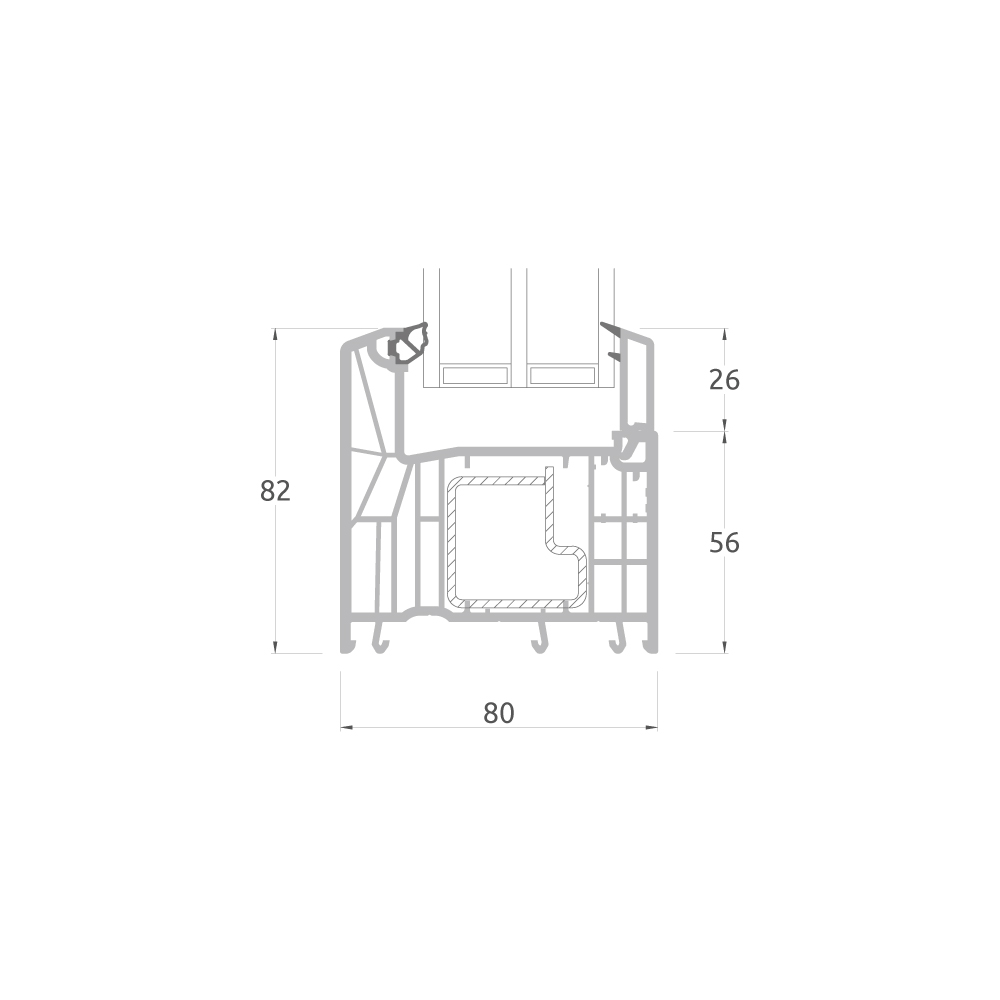

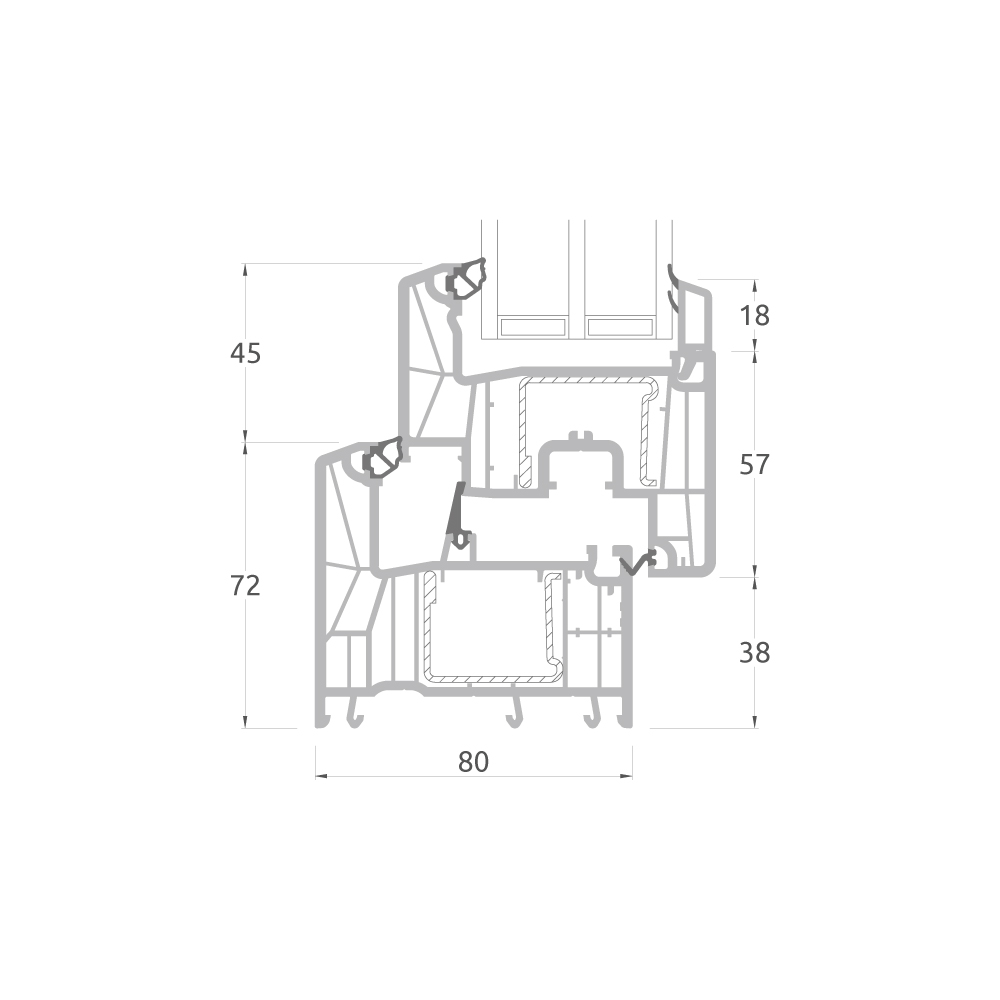

Cross-section drawings

Specifications

System	ALPO/Synego, PVC
Function	Inward opening TurnTilt, Tilt only, Tilt before turn, Turn only, Escape, Combination windows (sashes with fixed frames)
Tech. specifications	Profile: Depth: 80 mm Height (frame+sash): 117/127 mm Product (Turn Tilt window): Max height (frame 72/82): 2576/2596 mm* Max width, white, visible/concealed hinges (frame 72): 1676/1516 mm Max width, white, visible/concealed hinges (frame 82): 1696/1536 mm Max width, laminated, visible/concealed hinges (frame 72): 1576/1516 mm Max width, laminated, visible/concealed hinges (frame 82): 1596/1536 mm Min height, visible/concealed hinges (frame 72): 398/479 mm Min height, visible/concealed hinges (frame 82): 418/499 mm Min width, visible/concealed hinges (frame 72): 408/448 mm Min width, visible/concealed hinges (frame 82): 428/468 mm** Max window area (frame 72/82): 3,54/3,62 m2 Max sash weight (glass unit): 75 kg Window weight, 3-layer (frame 72/82): 75/79 kg* Arch forms, R-max: not available Visible or concealed hinges available Installation: screws, anchors or adjufix milled groove (10×10 mm) as an option HDF®
Performance	Thermal insulation:* Uw, 3-layer glass (frame 72/82): 0,75/0,76 W/m²K Uw, 2-layer glass: 1,2 W/m²K Sound control: Standard 3-layer glass unit: 33 dB Standard 2-layer glass unit: 32 db Special 3-layer glass unit: 47 dB Special 2-layer glass unit: 46 dB Tightness classes:** Water tightness (EN 12208): E750 (750 Pa) Air permeability (EN 12207): 4 (600 Pa) Wind tightness (EN 12210): B5/C5 (2000 Pa)3 gaskets High quality locking hardware
Enhanced features	Options for glass units: decorative, special glasses 97 options for profile colours Child protection hook-sash holder Sash stopper in any position (operated by handle) Ventilation
* – values are calculated with warm spacer, for reference window, 1230×1480 mm; - values for orientation only; * Applies to visible and concealed hinges, white or laminated; ****Applies on white or laminated; HDF® -high definition finishing.

Decorative bars

With a vast array of design, size, colour of decorative bars options available, your home can truly be as individual as you are.

Standard PVC bars
Glued on both sides
27/47/77mm
+Duplex
Download PDF

Classic PVC bars
Glued on both sides
22mm
+Duplex
Download PDF

Combined PVC bars
Glued on both sides:
Standard bars 27mm outside
Classic bars 22mm inside
+ Duplex
Download PDF

Standard PVC bars
Glued on both sides
27/47/77mm
Download PDF

Classic PVC bars
Glued on both sides
22mm
Download PDF

Combined PVC bars
Glued on both sides:
Standard bars 27mm outside
Classic bars 22mm inside
Download PDF

Bars inside the glass
18/26/45mm
Download PDF

Profile colors

Colour accuracy

Due to monitor differences, actual colors may vary slightly from what appears online. Contact us for color samples if you need help selecting a finish.

*similar to RAL color standard

90+ colors to choose
Resistant to UV-rays
Higher protection from scratches
Grain or wooden surface textures
No standard colors
Different colors on inside and outside possible
Different colors on sash and frame possible

02 Cream White (9001) — 02 Cream White (RAL 9001)*

03 Light Grey (7035) — 03 Light Grey (RAL 7035)*

04 Signal Grey (7004) — 04 Signal Grey (RAL 7004)*

07 Agate Grey (7038) — 07 Agate Grey (RAL 7038)*

08 Concrete Grey (7023) — 08 Concrete Grey (RAL 7023)*

09 Trumpet C-32N (7006) — 09 Trumpet C-32N (RAL 7006)*

10 Quartz Grey (7039) — 10 Quartz Grey (RAL 7039)*

11 Quartz Grey (7039) — 11 Quartz Grey (RAL 7039)*

12 Flemish Gold C-33 (7013) — 12 Flemish Gold C-33 (RAL 7013)*

13 Basalt Grey (7012) — 13 Basalt Grey (RAL 7012)*

14 Basalt Grey (7012) — 14 Basalt Grey (RAL 7012)*

15 Slate Grey (7015) — 15 Slate Grey (RAL 7015)*

16 Anthracite Grey (7016) — 16 Anthracite Grey (RAL 7016)*

17 Anthracite Grey (7016) — 17 Anthracite Grey (RAL 7016)*

19 Black Grey (7021) — 19 Black Grey (RAL 7021)*

21 Chocolate Brown (8017) — 21 Chocolate Brown (RAL 8017)*

22 Brown Chestnut (8017) — 22 Brown Chestnut (RAL 8017)*

23 Ash C-35 (7022) — 23 Ash C-35 (RAL 7022)*

24 Black Brown (8022) — 24 Black Brown (RAL 8022)*

27 Dark Red (3011) — 27 Dark Red (RAL 3011)*

28 Wine Red (3005) — 28 Wine Red (RAL 3005)*

29 Moss Green (6005) — 29 Moss Green (RAL 6005)*

30 Dark Green (6009) — 30 Dark Green (RAL 6009)*

31 Emerald Green (6001) — 31 Emerald Green (RAL 6001)*

32 Brilliant Blue (5007) — 32 Brilliant Blue (RAL 5007)*

33 Dark Blue 5030 (5005) — 33 Dark Blue 5030 (RAL 5005)*

34 Steel Blue (5011) — 34 Steel Blue (RAL 5011)*

35 Silber D (9006) — 35 Silber D (RAL 9006)*

36 Silber V (9006) — 36 Silber V (RAL 9006)*

37 Metbrush aluminium (9006) — 37 Metbrush aluminium (RAL 9006)*

38 Crown Platinum (7016) — 38 Crown Platinum (RAL 7016)*

39 Quartz Platinum (7039) — 39 Quartz Platinum (RAL 7039)*

40 Copper (2013/8004) — 40 Copper (RAL 2013/8004)*

44 Metbrush Anthracite Grey (7016) — 44 Metbrush Anthracite Grey (RAL 7016)*

48 Natural Oak (1014) — 48 Natural Oak (RAL 1014)*

49 Irish Oak (1014) — 49 Irish Oak (RAL 1014)*

50 Winchester XA (1011) — 50 Winchester XA (RAL 1011)*

51 Golden Oak (8001) — 51 Golden Oak (RAL 8001)*

52 Walnut V (8024) — 52 Walnut V (RAL 8024)*

53 Light Oak (1011) — 53 Light Oak (RAL 1011)*

54 Rustic Oak (8008) — 54 Rustic Oak (RAL 8008)*

55 Dark Oak (8028) — 55 Eiche Dunkel (RAL 8028)*

56 Swamp Oak (8028) — 56 Swamp Oak (RAL 8028)*

57 Oregon Pine (1004) — 57 Oregon Pine (RAL 1004)*

58 Mountain Pine (1002) — 58 Mountain Pine (RAL 1002)*

59 Shogun AC (1001) — 59 Shogun AC (RAL 1001)*

60 Shogun AF (1017) — 60 Shogun AF (RAL 1017)*

61 Stripe Douglas (8023) — 61 Stripe Douglas (RAL 8023)*

62 Shogun AD (1011) — 62 Shogun AD (RAL 1001)*

63 Rustic Cherry (1034) — 63 Rustic Cherry (RAL 1034)*

64 Soft Cherry (8023) — 64 Soft Cherry (RAL 8023)*

66 Macore (8023) — 66 Macore (RAL 8023)*

67 Sapeli (8012) — 67 Sapeli (RAL 8012)*

68 Black Cherry (8012) — 68 Black Cherry (RAL 8012)*

69 Siena PR (8003) — 69 Siena PR (RAL 8003)*

71 AnTEAK (1019) — 71 AnTEAK (RAL 1019)*

72 Cherry Amaretto (1006) — 72 Cherry Amaretto (RAL 1006)*

73 Noce Sorrento Balsamico (8001) — 73 Noce Sorrento Balsamico (RAL 8001)*

74-Brillant-weiss-color — 74 Brilliant White (RAL 9016)*

75_Altweiss-STYLO-color — 75 Antique White STYLO (RAL 9010)*

76_Creme-STYLO-color — 76 Cream STYLO (RAL 9001)*

80 Zinc Yellow (1018) — 80 Zinc Yellow (RAL 1018)*

81 Moondance (7030) — 81 Moondance (RAL 7030)*

86 Light Red 3054 (3002) — 86 Light Red 3054 (RAL 3002)*

89 Metbrush Silver (9007) — 89 Metbrush Silver (RAL 9007)*

90 Metbrush Brass (1036) — 90 Metbrush Brass (RAL 1036)*

91 Walnut Terra (8008) — 91 Walnut Terra (RAL 8008)*

92 Mahagoni (8012) — 92 Mahagoni (RAL 8012)*

Glass

Insulated glass units

Insulated glass units play significant role achieving pleasant, comfortable indoors environment, high thermal properties and preventing heat loss. Our standard 2 -layers or high-performance 3-layers insulated glass units are produced with energy-saving low-emissivity (Low-E) selective coating and filled with argon gas. Warm edge spacer bars between glass layers significantly reduce conductivity (compared to alu) and uplift the overall U-value of a window. Depending on the purpose, insulated glass units can have additional characteristics: safety & security, solar or sound control and etc.

Below, our special glasses range. Contact us for more information.

Safety & security glass units

Safe and secure insulated glass units can be tempered, laminated or combine both characteristics in one. It provides protection against the risk of injuries due to accidental breakage and serves for protection of property from vandalism to burglary. Several options are available depending on required level of safety/security.

Solar control glass units

Solar control glass units reflect and filter the sun’s rays, protect all the interior surfaces from fading at same time allowing natural daylight into the room without uncomfortable visual glare. If you are worried about overheating where the glass is under direct or frequent sun exposure, then the insulated solar control glass units is your choice.

Sound control glass units

In order to avoid annoying traffic noise we recommend to choose insulated sound control glass units with increased noise reduction level. We offer a broad range of special glasses depending on desired acoustic level.

Glass controls noise by:

Reflecting the noise back towards the source,
Absorbing the noise within the glass.

Self-cleaning glass units

Self-cleaning glass with special coating is the ideal solution for higher floor buildings with limited cleaning access. The glass uses the natural daylight and the rainwater to break down organic dirt. It also dries quicker and tends not to leave as many streaks, or traces of water. As long as you have daylight and rain, it’s nearly maintenance free.

Anti-fog glass units

The occurrence of external condensation can be a problem, especially in spring and autumn on high thermal insulated windows or doors. Anti-fog glass units significantly reduce the amount of external condensation and make your living space more comfortable while ensuring a clear view through the window.

Decorative glass units

Decorative glass units with timeless textured patterns enhance style and design for your windows and doors. It
is an elegant way to create privacy to certain areas.
